100% designed and manufactured in the heart of Colorado
1/8" 5052 aluminum with superior corrosion resistance
Hammer finish powder coating

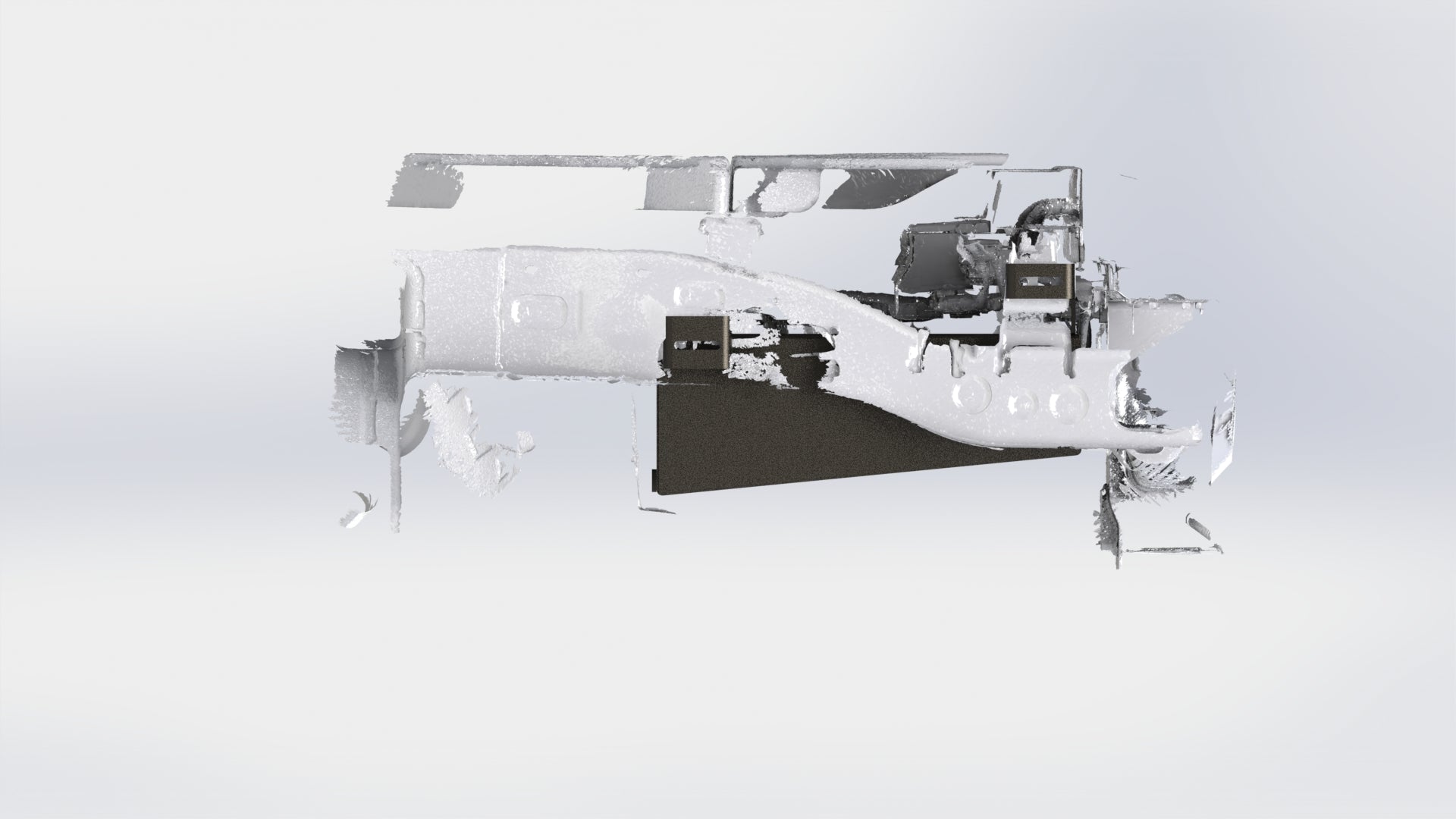

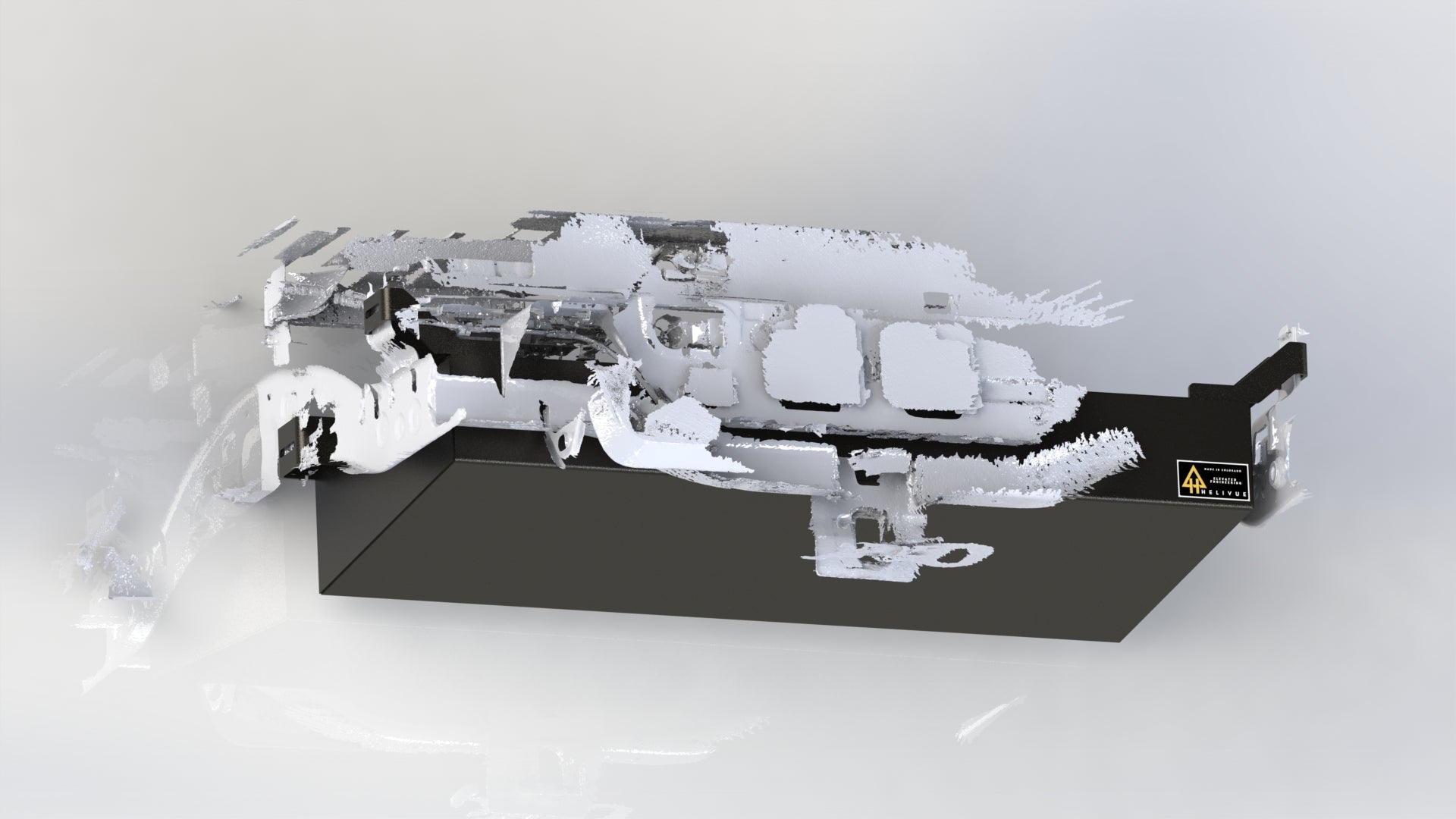

Replaces the spare tire and bolts in where the spare tire crossmember was, almost no modification required!
Requires replacing the rearmost tailpipe with an aftermarket turndown pipe (SXTH Element makes one), or cutting the factory rearmost tailpipe down.

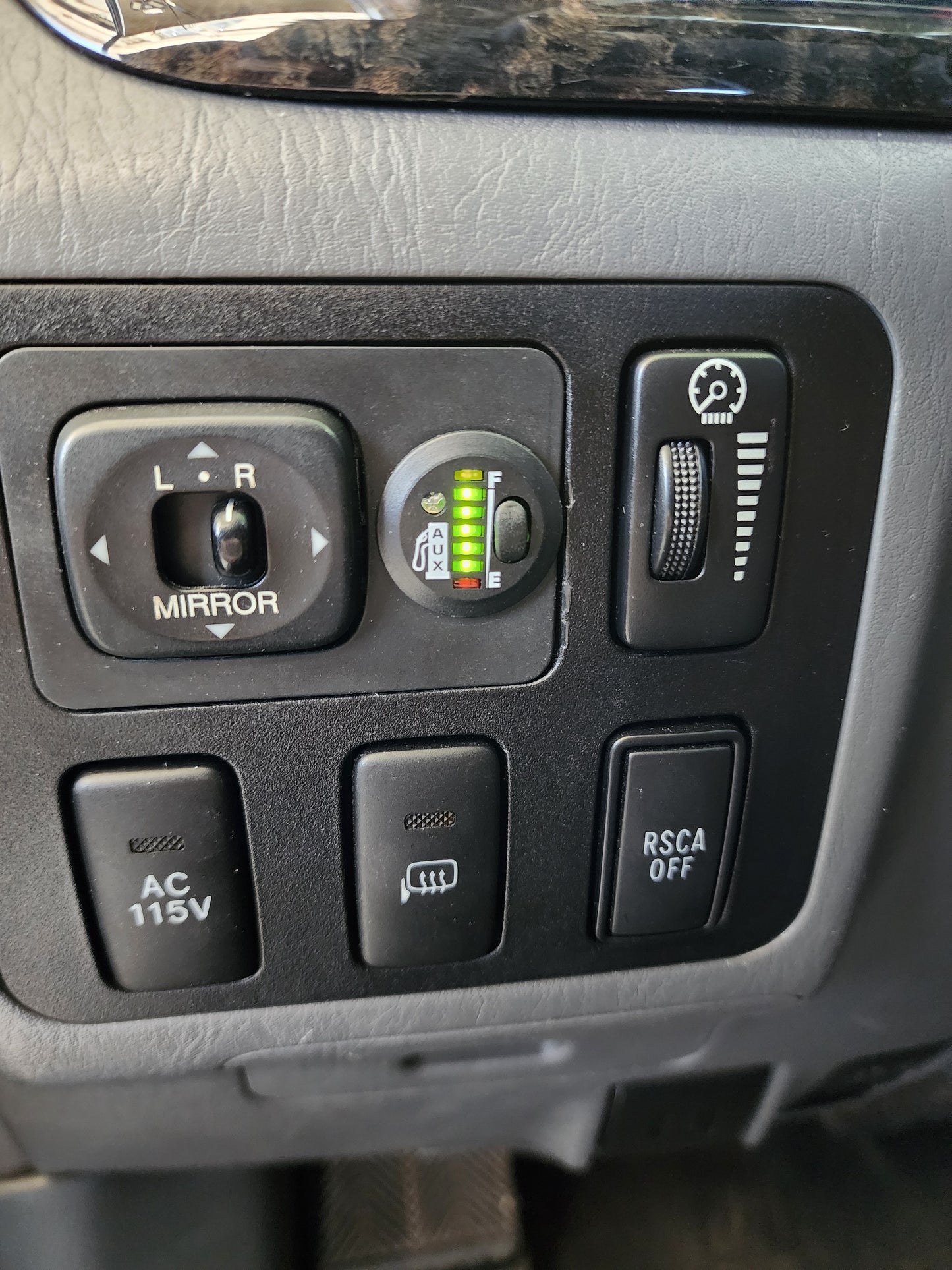

Helivue Design offers a no compromises approach to auxiliary fuel systems for the demands of the commuter or hard core overlander. This tank has been thoroughly beat, bashed, landed on and driven from 5,000-13,000 feet regularly without failure. A lightweight, high-clearance, 18 gallon aluminum auxiliary fuel system that tucks up in the spare tire location and keeps all factory evap systems in place. The Helivue Design auxiliary fuel tank fills up through your factory filler neck and will simultaneously fill both tanks at once. When you need to transfer fuel we include a high quality programmable fuel transfer switch/fuel level gauge, quality fuel pump, and stainless steel fuel level sender. Kit includes everything you need to install including quality stainless steel clamps, stainless steel hardware and bung.
